Additional Specs, Equipment, and Information:

Boat Name
Raven

Specs
Designer: Farrier Marine
Keel: Centerboard
Hull Shape: Trimaran

Dimensions
Beam: 17 ft 11 in
Minimum Draft: 1 ft 0 in
Maximum Draft: 5 ft 6 in
Dry Weight: 1584 lbs

Engines
Total Power: 5 HP

Engine 1:
Engine Brand: Honda 4-stroke
Engine Type: Outboard 4S
Engine/Fuel Type: Gas/Petrol
Engine Power: 5 HP

Accommodations
Number of single berths: 2
Number of heads: 1

Specs

SoCal PHRF sail number: 7084

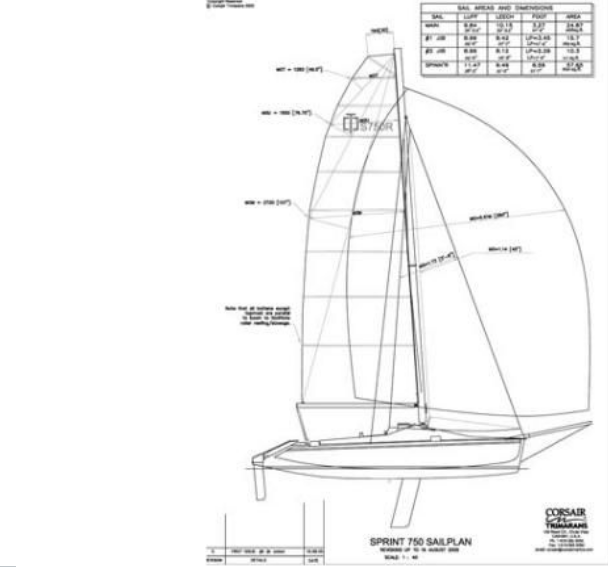

Sail areas according to PHRF Sail Plan Declaration:

Main = 268 sq.ft.

Genoa = 175.4 (class standard jib = 143)

Code Zero = 444.9

Equipment List

MADE IN USA – Corsair factory in San Diego

NO BOTTOM PAINT – always dry-sailed from Hydrohoist

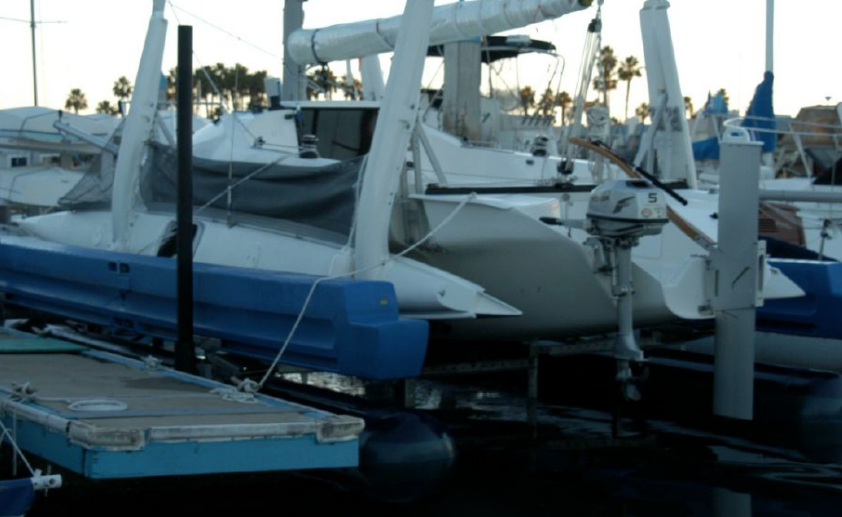

Hydrohoist 4500B boat lift – cleats to dock (no dock brackets or attachments)

UK Sails:
Tape Drive main 268 sq ft
Tape Drive genoa 175 sq ft (cruising)
NEW Tape Drive jib 143 sq ft (racing standard)
Code Zero 445 sq ft (yellow-green nylon) FAST!

• Schaefer Snapful 700 jib furling system
• Facnor SDG1000PC Code Zero Furling system
• Honda 5hp 4-stoke outboard
•  2 x Harken 16 winches
• 2 x Harken 16 self-tailing winches
• Harken winch handle
• Titan floating winch handle
• 2 winch handle holders mounted in the cockpit
• Harken mainsheet traveler system with windward-leeward 4-part controls
• Electrical system: battery, circuit breaker panel, navigation and cabin lights, autopilot; battery charger
• Simrad TP32 autopilot with remote
• Garmin GPSmap 76cx with cockpit mounting bracket
• Corsair mast raising/lowering equipment (uses trailer winch or Harken winch)
• Holt carbon fiber tiller extension
• Guardian 7 anchor with chain and nylon anchor line
• Swim ladder with transom mount
• Safety gear: 4 life jackets, 2 life cushions, flares, fire extinguisher, etc.
• Collapsible boat hook
• Bilge pump
• Spare Windex system for masthead
• Tool box with extensive list of tools and parts, including bolts and wrench for folding Corsair amas
• 2 fenders with lines and snap hooks

Additional Description
Folded beam measures 8'2".

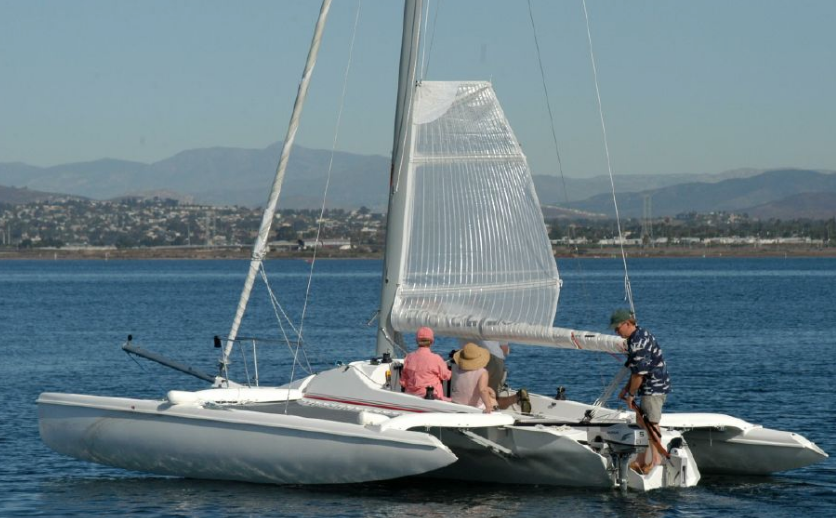

Manufacturer Provided Description
The Corsair Sprint 750 is based on the well-proven Corsair 24, and takes performance and fun to the next level: it offers all the performance and flexibility of a beach catamaran with none of the annoyances. It won't go into irons, it will tack and go to weather as well as or better than any monohull (and certainly better than any beach cat), and it gives you an optional cuddy cabin and full cockpit enclosure for camp-style overnighting, is fully beachable, easier to trailer, rig and launch than any other tri, cat or monohull in its size range.

With its huge cockpit and optional cockpit cabin, double bunk, area for portable head, and spacious decks and nets, the Corsair Sprint 750 is a highly mobile pocket cruiser; but it's the amazing performance - with 20-knots plus speed capability - that sets the Corsair Sprint 750 apart. Even in the toughest conditions you only need a crew of two to obtain top racing performance. The Corsair Sprint 750 can fly an easy-to-handle asymmetrical spinnaker for exhilarating performance at a high plane; synthetic rigging adds to the ease of rigging and maintenance. The Corsair Sprint 750 will have an active one-design class association and is destined to become a favorite one-design racer.

Sail Area

• Mainsail - 262 sq.ft.
• Jib - 166 sq.ft.
• Asym. spinnaker - 627 sq.ft.
